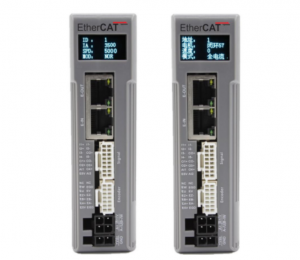

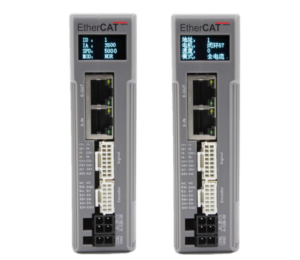

Hybrid Servo Drive-EC88D EtherCAT Servo Motor Controller
The economical hybrid servo driver is a stepper motor driver based on the EtherCAT standard protocol. It is independently developed and designed to control the closed-loop stepper motor of nema8-nema34.
Features
- Suitable for nema8-nema34 stepper motor.
- Standard EtherCAT protocol
- 0-8A,12-80V DC
- Integrated digital display
Specifications
| Rated current (Arms): | 8 A |
| Operating Voltage V: | 12-80 V |
| Interface: | EtherCAT |
| Inputs & Outputs: | 3 Digital inputs (5/24 V switchable ) 3 Analog input 0-5V 2 Digital outputs |
| OEM Programmable: | No |
| Customization: | Function customization |
| Corresponding Motors: | Stepper motor |
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| EC88DUM Manual | 3.036MB | January / 04 / 2020 | Download | |
| Motor Controllers Drives Catalog | 12.145MB | December / 19 / 2019 | Download |
