N5 EtherCAT DC Servo Controller EtherCAT Servo Motor Controller

High power dc servo driver, support stepper motor and servo motor. EtherCAT high-speed interface. Low-current versions with 12-72 V operating voltage and 10 A rated current / 10 A peak current, and high-current versions with 12-58 V operating voltage and 18 / peak current 40 A. Rich input and output interfaces. Host adaptation for Beckhoff, Omron, etc.

Features

  • Controlled by EtherCAT and analog/digital inputs
  • Easy to parameterize via  EtherCAT & EtherNet/IP
  • DC servo controller
  • Brake output

Specifications

Rated current (Arms):18 A
Operating Voltage V:12-58 V
Interface:EtherCAT
Inputs & Outputs:

6 Digital inputs (5/24 V switchable )

2  Analog input -10 - +10 V/0-20 mA switchable

2 Digital outputs

OEM Programmable:Yes
Customization:OEM logic program
Corresponding Motors:stepper and DC servo motor

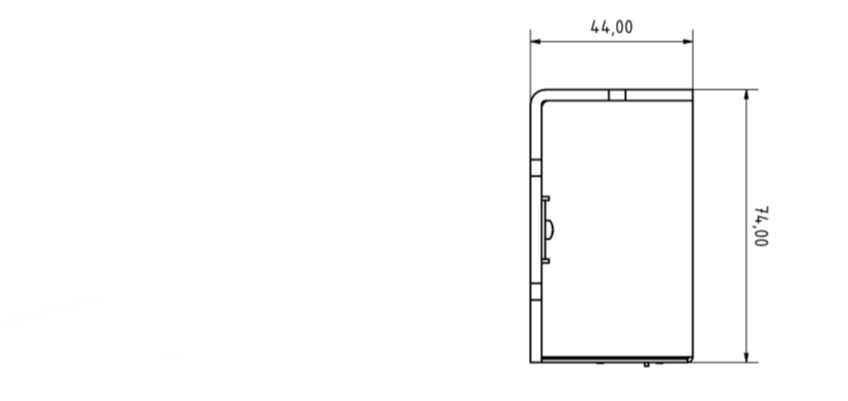

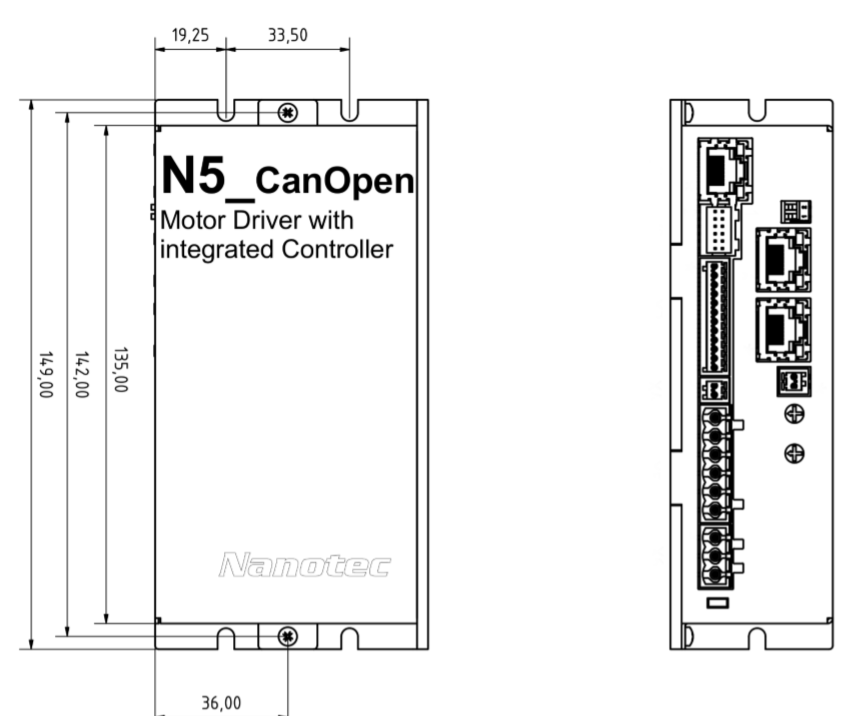

Dimension



 Connect



 Application_Note_TwinCAT3 V1.0.1

Related Files

File Type Size Last update Link
Motor Controllers Drives Catalog pdf 12.145MB December / 19 / 2019   Download
N5_EtherCAT_Technical-Manual_V2.0.2 pdf 6.239MB December / 26 / 2019   Download
PNDS-2.0.5-release-package zip 323.863MB December / 19 / 2019   Download
