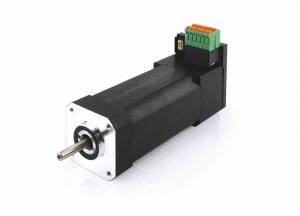

PD2-CB42C-E-08 105W CANopen Smart Stepper Motor

Integrated servo motor with CANopen bus control interface, specially designed for compact multi-axis systems, users do not need to consider the wiring and installation of multiple components, which saves the user's installation and debugging to the greatest extent; CANopen-based communication interface is applicable Distributed network deployment for multi-axis systems; rated output 50W power at 4000rpm, rated torque 0.25Nm, peak torque up to 0.75Nm ; German factory R & D and production;

Features

  • Integrated Control Servo Motor
  • CANopen Interface
  • High Precision Positioning, Speed and Torque Control
  • Enriching Input and Output Modules
  • NanoJ OEM Programmable

Specifications

Size(mm):42/Nema17 mm
Rated Speed (RPM):4000rpm
Torque (Nm):0.25/0.75 Nm
Interface:Canopen
OEM Programmable:Yes
Inputs & Outputs:

4 digital inputs (5/24 V software switchable)
1 analog input (0-20 mA / 0-10 V switchable)
3 digital outputs

Optional Gearbox:Yes
IP Protection:IP54
Customization:Customization Data

Related Files

File Type Size Last update Link
PD2 CB42C-E-08-105W pdf 122.35KB December / 05 / 2019   Download
PD2-C CANopen Technical Manual pdf 3.675MB December / 05 / 2019   Download
PNDS-1.0.4-release-package zip 181 MB December / 02 / 2019   Download
