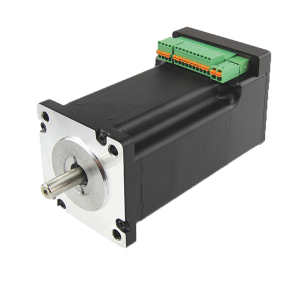

Integrated stepper motor-PD4-C-M-08 CANopen Integrated Brushless Servo Motor
Smart stepper motor with integrated controller and encoder. Space-saving all-in-one servo system that simplifies installation. Flange size: 56 mm.
Features
- Controlled by fieldbus , clock & direction or analog/digital inputs
- Easy to parameterize via CANopen
- Simple programming with the Plug & Drive Studio
- Closed loop with singleturn absolute encoder
- High precision and smooth running
Specifications
| Size(mm): | 56 mm |
| Rated Speed (RPM): | 600rpm |
| Torque (Nm): | 1.1 Nm |
| Interface: | Canopen |
| OEM Programmable: | Yes |
| Inputs & Outputs: | 4 digital inputs (5/24V switchable) 1 analog inputs (0-10V switchable) 2 digital outputs (max 24 V/100 mA)
|
| Optional Gearbox: | Yes |
| IP Protection: | IP54 |
Dimensions
Torque Curves
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| PD4-C5918M4204-E-08 Data Sheet | 98.981KB | December / 25 / 2019 | Download | |
| PD4-C5918M4204-E-08 3D Model | stp | 2.462MB | December / 25 / 2019 | Download |
| PD4C_CANopen_Technical-Manual_V2.0.1 | 5.768MB | December / 27 / 2019 | Download | |
| Product_Overview_PD4-C | 610.928KB | December / 27 / 2019 | Download |
