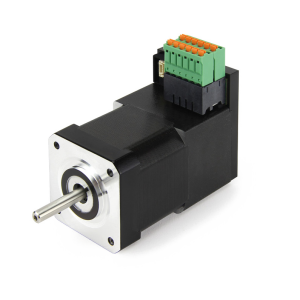

Integrated stepper motor-PD2-C-08 CANopen Integrated Brushless Servo Motor
Smart stepper motor with integrated controller and encoder. Space-saving all-in-one servo system that simplifies installation. Flange size: 42 mm.
Features
- Controlled by fieldbus , clock & direction or analog/digital inputs
- Easy to parameterize via CANopen
- Simple programming with the Plug & Drive Studio
- Closed loop with singleturn absolute encoder
- High precision and smooth running
Specifications
| Size(mm): | 42 mm |
| Rated Speed (RPM): | 600rpm |
| Torque (Nm): | 0.5 Nm |
| Interface: | Canopen |
| OEM Programmable: | Yes |
| Inputs & Outputs: | 4 digital inputs (5/24V switchable) 1 analog inputs (0-20mA/0-10V switchable) 3 digital outputs (max 24 V/100 mA)
|
| Optional Gearbox: | Yes |
| IP Protection: | IP54 |
Dimensions
Torque Curves

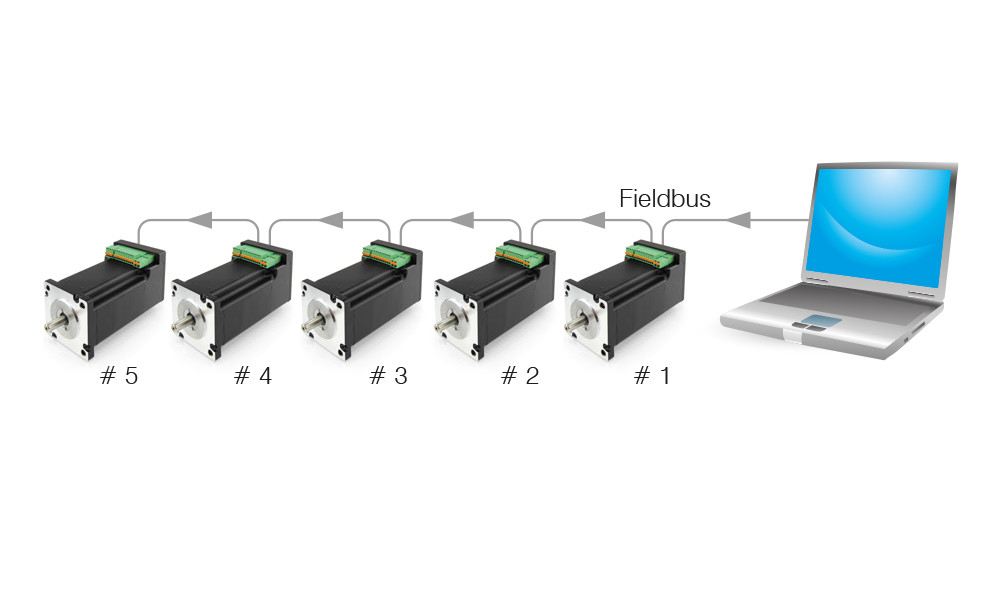

Multiple Control methods
*Feildbus control such as canopen
*Feildbus control such as canopen
