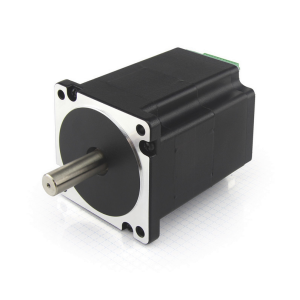

brushless DC motor with integrated controller PD6-CB-M CANopen Smart Stepper Motor
Smart BLDC motor with integrated controller and encoder. Ideally suited for applications requiring high efficiency and compact size. Space-saving all-in-one servo system that simplifies installation. Flange sizes: 80 mm.
Features
- Controlled by fieldbus , clock & direction or analog/digital inputs
- Easy to parameterize via USB or CANopen
- Simple programming with the Plug & Drive Studio
- Closed loop with singleturn absolute encoder
- Long service life
Specifications
| Size(mm): | 80 mm |
| Rated Speed (RPM): | 3000rpm |
| Torque (Nm): | 1.7 Nm |
| Interface: | Canopen USB |
| OEM Programmable: | Yes |
| Inputs & Outputs: | 6 digital inputs (5/24V switchable) 2 analog inputs (0-20 mA/0-10 V switchable) 2 digital outputs (max 24 V/100 mA)
|
| Optional Gearbox: | Yes |
| IP Protection: | IP54 |
Dimensions
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| PD6-CB80M048030-E-09 Data Sheet | 134.762KB | December / 26 / 2019 | Download | |
| PD6C_CANopen_USB_Technical-Manual_V2.0.1 | 4.536MB | December / 27 / 2019 | Download | |
| Product_Overview_PD6-CB | 269.622KB | December / 27 / 2019 | Download |
