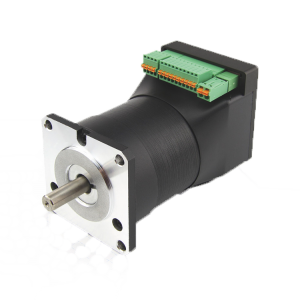

brushless DC motor with integrated controller PD4-CB-08 CANopen Smart Stepper Motor
Smart BLDC motor with integrated controller and encoder. Ideally suited for highly dynamic applications with space constrictions, such as in laboratory automation. Space-saving all-in-one servo system that simplifies installation. Flange size: 56 mm.
Features
- Controlled by fieldbus , clock & direction or analog/digital inputs
- Easy to parameterize via CANopen
- Simple programming with the Plug & Drive Studio
- Closed loop with singleturn absolute encoder
- Long service life
Specifications
| Size(mm): | 56 mm |
| Rated Speed (RPM): | 3500rpm |
| Torque (Nm): | 0.37 Nm |
| Interface: | Canopen |
| OEM Programmable: | Yes |
| Inputs & Outputs: | 4 digital inputs (5/24V switchable) 1 analog inputs (0-20 mA/0-10 V switchable) 2 digital outputs (max 24 V/100 mA)
|
| Optional Gearbox: | Yes |
| IP Protection: | IP54 |
Dimensions
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| PD4C_CANopen_Technical-Manual_V2.0.1 | 5.768MB | December / 27 / 2019 | Download | |
| Product_Overview_PD4-CB | 299.811KB | December / 27 / 2019 | Download | |
| PD4-CB59M024035-E-08 Data Sheet | 99.07KB | December / 26 / 2019 | Download | |
| PD4-CB59M024035-E-08 3D Model | stp | 2.427MB | December / 26 / 2019 | Download |
