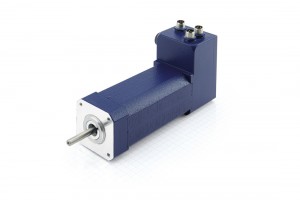

brushless DC motor with integrated controller PD2-CB-IP-08 CANopen Smart Stepper Motor
Smart BLDC motor with integrated controller and encoder and protection class IP65. Equipped with M12 connectors. In the CANopen version, the drive can be controlled via the fieldbus profile CiA 402. Space-saving all-in-one servo system that simplifies installation. Flange size: 42 mm.
Features
- Controlled by fieldbus , clock & direction or analog/digital inputs
- Easy to parameterize via CANopen
- Simple programming with the Plug & Drive Studio
- Closed loop with singleturn absolute encoder
- Ideally suited for dynamic applications
- Long service life
Specifications
| Size(mm): | 42 mm |
| Rated Speed (RPM): | 4000rpm |
| Torque (Nm): | 0.25 Nm |
| Interface: | Canopen |
| OEM Programmable: | Yes |
| Inputs & Outputs: | 4 digital inputs (5/24V switchable) 1 analog inputs (0-20 mA/0-10 V switchable) 2 digital outputs (max 24 V/100 mA)
|
| Optional Gearbox: | Yes |
| IP Protection: | IP67 |
Dimensions
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| PD2-CB42CD-E-65-08 Data Sheet | 125.355KB | December / 24 / 2019 | Download | |
| PD2-CB42CD-E-65-08 3D Model | stp | 1.425MB | December / 24 / 2019 | Download |
| Product_Overview_PD2-CB-IP | 353.434KB | December / 27 / 2019 | Download | |
| PD2C-IP_CANopen_Technical-Manual_V1.0.1 | 3.334MB | December / 27 / 2019 | Download |
