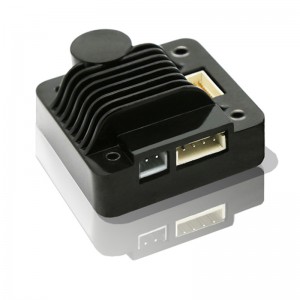

PMC007C3S 3A Micro CANopen Stepper Motor Driver
PMC007C3S is a miniature CAN bus stepper motor driver, which can be directly mounted on the back cover of 42(NEMA17) series stepper motors. This series of controllers provide 0-3A current. Using PMC007C3S stepper motor controller can easily realize industrial control network system with up to 120 nodes.PMC007C3S adopts the industry standard CANOPEN DS301 control protocol, which not only greatly simplifies the complexity of the upper-level control system, but also retains the control flexibility to the greatest extent, and is suitable for various high-precision, wide-range industrial applications.Integrated encoder input interface.
Features
- Small size，42.3*42.3mm
- Control via CANopen (DS301)
- 0-3A current instruction set
- Micro integrated stepper motor controller
- Easy to control via Canopen
- Simple debugging with the PC debugging software
- Economical
Specifications
| Rated current (Arms): | 3 A |
| Operating Voltage V: | 12-48 V |
| Interface: | Canopen |
| Inputs & Outputs: | 2 Digital inputs (5V ) 1 Analog input 0 - 3.3 V 2 Digital outputs |
| OEM Programmable: | No |
| Customization: | Firmware |
| Corresponding Motors: | Stepper motor |
Dimension
Pin assignment
| General I/O | IO function Emergency stop input, brake control, digital input/output, analog input, factory reset, 5V output |
| The input specifications | Digital input voltage: 0-5V Analog speed regulation input voltage: 0-3.3V Emergency stop input voltage: 0-24V |
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| PMC007C6SP2 User Manual | 4.287MB | December / 25 / 2019 | Download | |
| PMC007 CANopen Debug Software | zip | 5.46MB | December / 25 / 2019 | Download |
