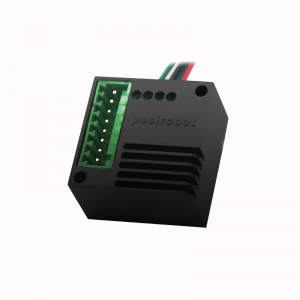

PMC007C2 Nema11 Controller CANopen Stepper Motor Driver
PMC007C2 is a miniature integrated 28(Nema11) stepper motor driver, which can be directly mounted on the rear cover of 28 (Nema11)stepper motor. This stepper motor driver via CANopen control.
Features
- Miniature Small size，28*28mm
- Control via CANopen (DS301)
- 0-2A current instruction set
- Micro integrated stepper motor controller
- Easy to control via Canopen
- Simple debugging with the PC debugging software
- Economical
Specifications
| Rated current (Arms): | 2 A |
| Operating Voltage V: | 12-24 V |
| Interface: | Canopen |
| Inputs & Outputs: | 2 Digital inputs (5V ) 1 Analog input 0 - 3.3 V 2 Digital outputs |
| OEM Programmable: | Yes |
| Customization: | Firmware |
| Corresponding Motors: | Stepper motor |
Dimension
Pin assignment
| General I/O | IO function Emergency stop input, brake control, digital input/output, analog input, factory reset, 5V output |
| The input specifications | Digital input voltage: 0-5V Analog speed regulation input voltage: 0-3.3V Emergency stop input voltage: 0-24V |
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| PMC007C2 CAN DebugTool En V1.0.50 | zip | 5.46MB | December / 27 / 2019 | Download |
| PMC007 CAN_SDK customer_20190305 | zip | 51.068MB | December / 27 / 2019 | Download |
| PMC007C2_User_Manual_v0.2.6_En.pdf | 2.657MB | December / 27 / 2019 | Download |
