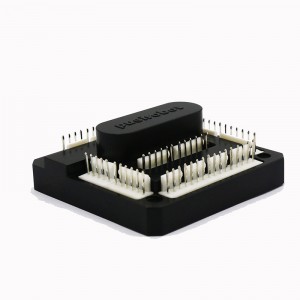

PMC005 Miniature multi-axis stepper Rs485-motor-driver

PMC005xx is a miniature four-axis stepper motor drive controller, which can be controlled via USB interface or RS485 bus network. It has the characteristics of small size, strong driving force and low heat generation. PMC005xx stepper motor controller can provide five-axis stepper motor parallel control, each axis can continuously adjust the peak current of 0.1-2.5A, maximum 32 subdivisions, and built-in acceleration and deceleration, sensor control, and abnormal protection functions, especially suitable for structure Compact automation equipment.

Features

  • 0-2.5A per axis
  • four-axis stepper motor controller
  • Easy to control via RS485
  • Simple debugging with the PC debugging software
  • Economical

Specifications

Rated current (Arms):2.5/axis A
Operating Voltage V:12-36 V
Interface:RS485
Inputs & Outputs:

2 Digital inputs (5V )

2 Digital outputs

OEM Programmable:No
Customization:Firmware
Corresponding Motors:Stepper motor

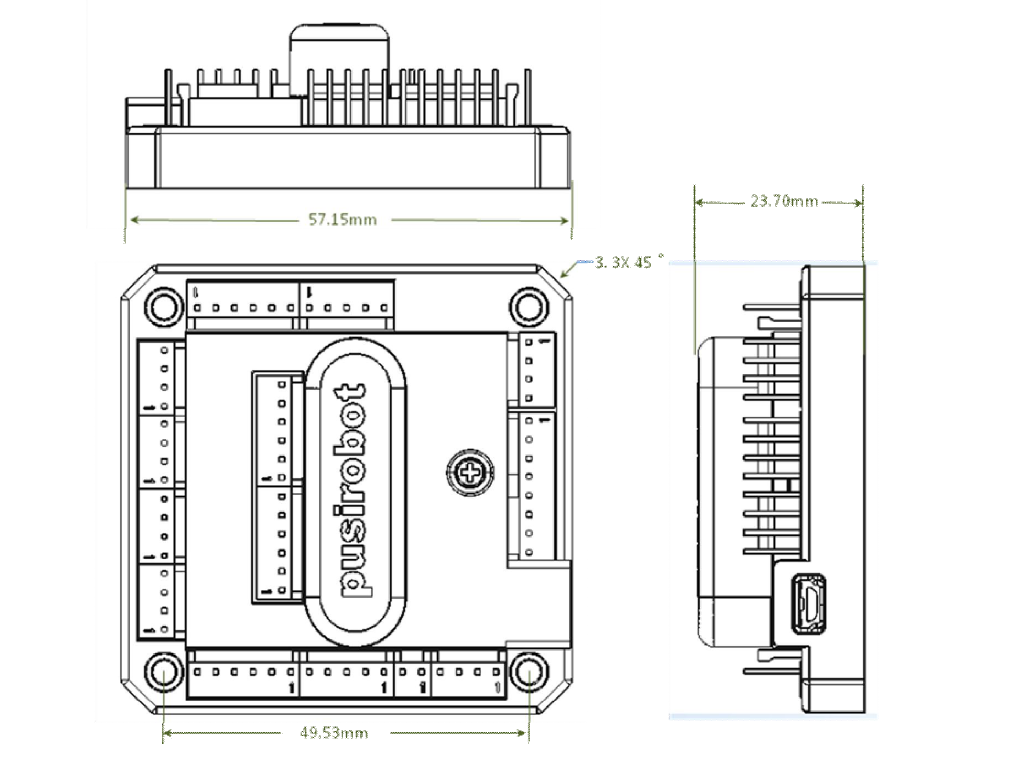

Dimension

Function Description

* Maximum Four-axis stepper motor parallel control, or four axis stepper motor + two axis dc brush control

*Maximum 16 sets of network control.

Related Files

File Type Size Last update Link
Motor Controllers Drives Catalog pdf 12.145MB December / 19 / 2019   Download
Product Overview PMC005 pdf 1.091MB December / 25 / 2019   Download
