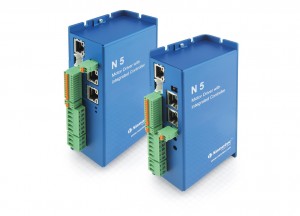

N5 High Power 0-18A CANopen Stepper Motor Driver

Universal controller/drive for brushless DC motors and stepper motors. Available in a low-current version with 12-72 V operating voltage and 10 A rated current/10 A peak current as well as in a high-current version with 12-58 V operating voltage and 18 rated current/40 A peak current.

Features

  • Controlled by fieldbus, clock & direction and analog/digital inputs
  • Easy to parameterize via CANopen, EtherCAT, Ethernet, EtherNet/IP or Modbus       (RTU and TCP)
  • Simple programming with the Plug & Drive Studio
  • Programmable for stand-alone operation
  • Closed loop with encoder
  • Brake output

Specifications

Rated current (Arms):18 A
Operating Voltage V:12-58 V
Interface:Canopen
Inputs & Outputs:

5 Digital inputs (5/24 V switchable )

2  Analog input -10 - +10 V/0-20 mA switchable

3 Digital outputs

OEM Programmable:Yes
Customization:OEM logic program
Corresponding Motors:stepper and DC servo motor

Dimension

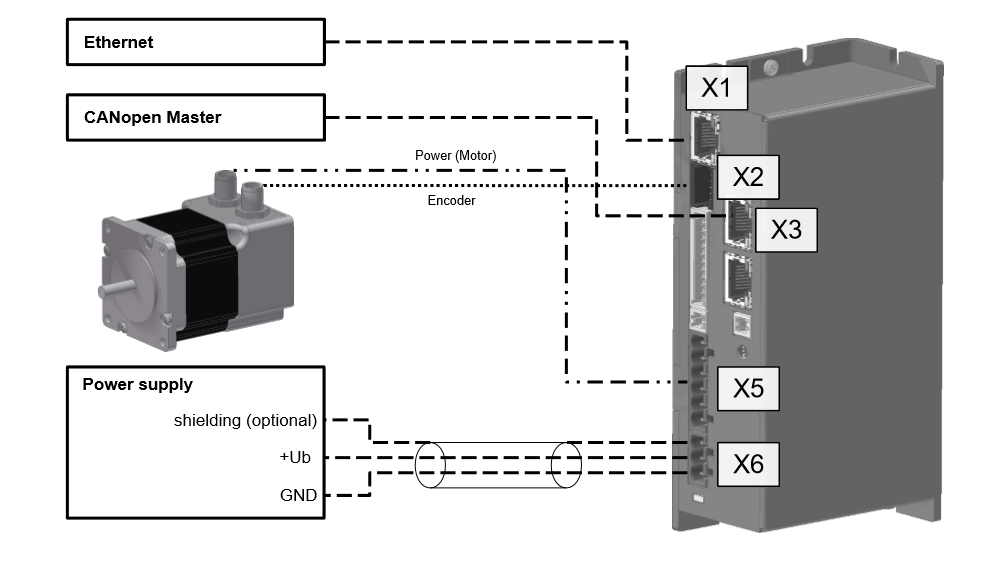

 Connect



Related Files

File Type Size Last update Link
Motor Controllers Drives Catalog pdf 12.145MB December / 19 / 2019   Download
PNDS-1.0.4-release-package zip 181 MB December / 02 / 2019   Download
N5-x-2_CANopen_Technical-Manual_V2.0.1 pdf 6.7MB December / 25 / 2019   Download
