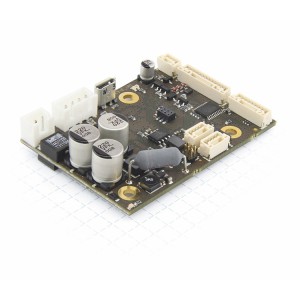

Mirco DC Servo Driver-CL3E CANopen Servo Motor Controller

Designed for small servo systems, rated output power is 72W. Peak power is 144W. Applicable to all kinds of dc servo motors, including coreless motors of maxon, FAULHABER and our own, standard BLDC motors. Supports servo control with encoder and Hallless sensorless control.Control via USB, CANopen, Modbus RTU (RS232, RS485)

Features

  • Designed for dc servo systems
  • Control via USB, CANopen, Modbus RTU (RS232, RS485)
  • Easy to use internal logic program
  • Easy control via HMI or PLC etc.Master
  • High Precision Positioning, Speed and Torque Control
  • Enriching Input and Output Modules

Specifications

Rated current (Arms):3 A
Operating Voltage V:12-24 V
Interface:Modbus RTU
Inputs & Outputs:

Inputs (5V)  5

0-10 V, 0-20 mA / 0-10 V switchable 2

3 digital outputs

OEM Programmable:Yes
Customization:OEM logic program
Corresponding Motors:stepper and DC servo motor

Dimension

Pin assignment

Related Files

File Type Size Last update Link
CL3-E_CANopen_USB_ModbusRTU_Technical-Manual_V2.0.2 pdf 3.991MB December / 13 / 2019   Download
CL3-E-Overview pdf 386.13KB December / 13 / 2019   Download
PNDS-1.0.4-release-package zip 181 MB December / 02 / 2019   Download
