Servo & Stepper Motor Controller-C5-E-2-11

Servo & Stepper Motor Controller-C5-E-2-11 Ethernet/IP Servo Motor Controller

Ethernet / ip Motor Controller-C5-E-2-11, designed based on standard Ethernet / ip protocol, can drive stepper motors, stepper motors with encoders, DC servo motors (EC servos), etc. Rated current output 0-10A (command adjustment), peak current (0-30A) (command adjustment). Applicable to equipment application of AB master station.

Features

  • Ethernet / ip Motor Controller
  • Stepper & EC servo Universal
  • Rated current output 0-10A
  • peak current (0-30A)
  • Easy to control via Ethernet / ip or USB
  • Compact
  • Integrated input and output module

Specifications

Rated current (Arms):10 A
Operating Voltage V:12-48 V
Interface:EtherNet/IP
Inputs & Outputs:

5 Digital inputs (5V/24V )

2  Analog input 0-10 V, 0-20 mA/0-10 V switchable

3 Digital outputs

OEM Programmable:Yes
Customization:Firmware
Corresponding Motors:stepper and DC servo motor

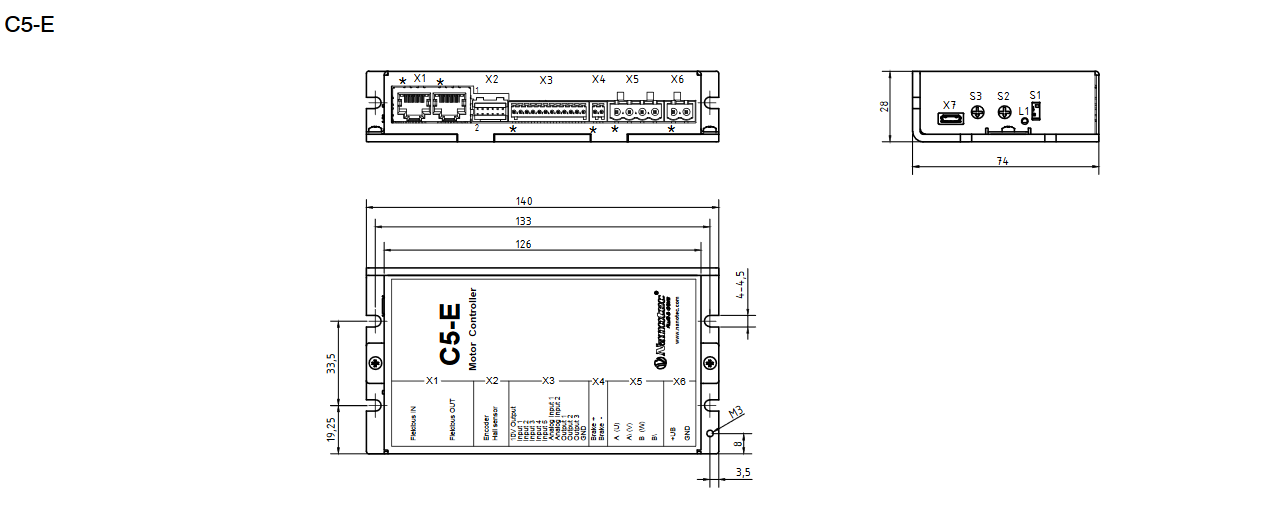

Dimension
