High Power Motor Controller-N5-2-3 Ethernet/IP Servo Motor Controller
The high-power controller is designed based on the EtherNet / IP protocol. Quick connection with PLC systems such as AB. It can also be controlled directly based on Ethernet. The rated output is 18A and the maximum output is 40A. Suitable for high power stepper motors and servo motors.
Features
- Ethernet / ip Motor Controller
- Stepper & EC servo Universal
- Rated current output 0-18A
- peak current (0-40A)
- Easy to control via Ethernet / ip or USB
- Compact
- Integrated input and output module
Specifications
| Rated current (Arms): | 18 A |
| Operating Voltage V: | 12-58 V |
| Interface: | EtherNet/IP |
| Inputs & Outputs: | 6 Digital inputs (5V-24V ) 2 Analog input 0-10 V, 0-20 mA/0-10 V switchable 2 Digital outputs |
| OEM Programmable: | Yes |
| Customization: | Firmware |
| Corresponding Motors: | stepper and DC servo motor |

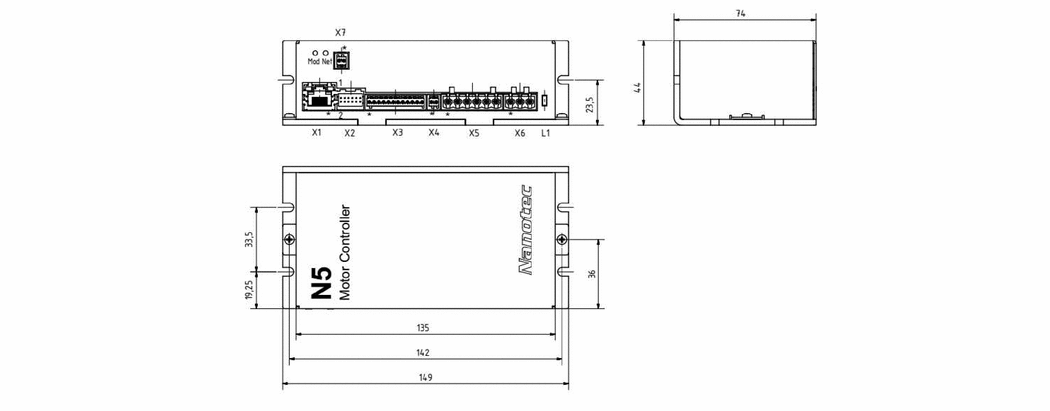

Dimension
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| N5-x-3_EtherNetIP_Technical-Manual_V2.0.1 | 5.168MB | January / 10 / 2020 | Download | |
| PNDS-2.0.5-release-package | zip | 323.863MB | December / 19 / 2019 | Download |
