LSA281S10-A-UGFC-152

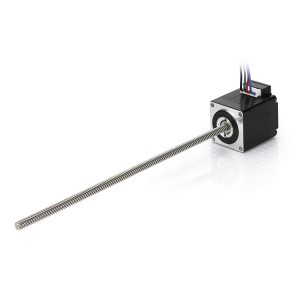

Compact external linear actuator in size NEMA 11 (28 mm). Ideal for the installation of compact linear axes, since it does not require a coupling, a bearing base or any installation effort. No linear guide necessary for small loads and low load ratings. Comes with trapezoidal or ACME thread. Available in several lengths and with different windings. The electrical connection is made using an integrated connector.
Please note:
- The force and output power ratings listed in the data sheets are based on a duty cycle of approx. 10% to 20% and must be reduced for higher values.
- Moving against fixed limit stops should be avoided.
Specifications
| Force (N): | 50 N |
| Speed (mm/s): | 120 mm/s |
| Length (mm): | 33 mm |
| Size (mm): | 28 mm |
| Output: | External drive |
| Integrated Encoder: | No |
| Optional: | Encoder |
| Controllers / Drives Optional: |
CL3-E - Motor controller for CANopen, Modbus RTU or USB
|
