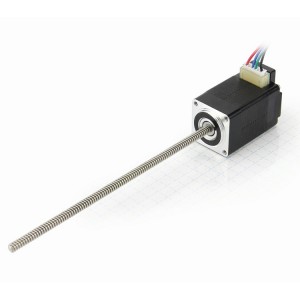

LSA201S06-A-UECB-102
Compact external linear actuator in size NEMA 8 (20 mm). Ideal for the installation of compact linear axes, since it does not require a coupling, a bearing base or any installation effort. No linear guide necessary for small loads and low load ratings. Comes with trapezoidal or ACME thread. Available in several lengths and with different windings. The electrical connection is made using an integrated connector.
Please note:
- The force and output power ratings listed in the data sheets are based on a duty cycle of approx. 10% to 20% and must be reduced for higher values.
- Moving against fixed limit stops should be avoided.
- Matching nuts can be found in the accessories list of the selected product.
Specifications
| Force (N): | 33.7 N |
| Speed (mm/s): | 60 mm/s |
| Length (mm): | 33 mm |
| Size (mm): | 20 mm |
| Output: | External drive |
| Integrated Encoder: | No |
| Optional: | Encoder |
| Controllers / Drives Optional: |
CL3-E - Motor controller for CANopen, Modbus RTU or USB
|
Technical Data
Dimensions
Torque Curves
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| Linear Motor Catalog | 117.093KB | March / 16 / 2020 | Download | |
| LSA20 Product_Overview | 259.842KB | March / 17 / 2020 | Download | |
| LSA201S06-A-UECB-102 3D Model | stp | 481.434KB | March / 16 / 2020 | Download |
| LSA201S06-A-UECB-102 Data Sheet | 101.198KB | March / 16 / 2020 | Download |
