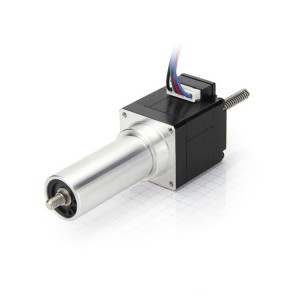

LGA281S10-B-UGFC-038
Very compact linear actuator in size NEMA 11 (28 mm) with extremely high positioning speed, short positioning time and high thrust and tensile force. This linear actuator includes a movable polygon profile and permits high-precision feeding without additional mechanical components thanks to the integrated linear guide.
Please note:
- The force and output power ratings listed in the data sheets are based on a duty cycle of approx. 10% to 20% and must be reduced for higher values.
- Moving against fixed limit stops should be avoided.
Specifications
| Force (N): | 50 N |
| Speed (mm/s): | 120 mm/s |
| Length (mm): | 33 mm |
| Size (mm): | 28 mm |
| Output: | Fixed shaft |
| Integrated Encoder: | No |
| Optional: | Encoder |
| Controllers / Drives Optional: |
CL3-E - Motor controller for CANopen, Modbus RTU or USB
|
Technical Data
Dimensions
Torque Curves
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| Linear Motor Catalog | 117.093KB | March / 16 / 2020 | Download | |
| LGA281S10-B-UGFC-038 3D Model | stp | 4.467MB | March / 16 / 2020 | Download |
| LGA281S10-B-UGFC-038 Data Sheet | 123.646KB | March / 16 / 2020 | Download | |
| LGA28 Product_Overview | 447.047KB | March / 17 / 2020 | Download |
