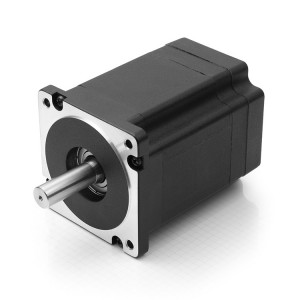

DB87S01-S 80mm High Performance DC Servo Motor

Brushless DC motor with high output power and long service life. By mounting a Nanotec encoder, this motor can be expanded into a high-performance servo motor for high speed ranges. For higher torques high-performance planetary gearboxes can be mounted. Via the online configurator this motor can also be ordered with magnetic encoder or brake. Available in three lengths.

Features

  • High speed
  • Longer life and higher accuracy
  • Different lengths available
  • Microdriver available
  • Closed-loop and open-loop versions are available

Specifications

Rated Output P (W):220 W
Rated Torque T (Nm):0.7 Nm
Flange (mm):86 mm
No-load speed (rpm):3000 rpm
Motor type:Brushless DC Motor
IP Protection:IP54
Optional:Encoder & Gearbox
Controllers / Drives Optional:

C5-E - Motor controller for CANopen,EtherCAT,EtherNet/IP, Modbus RTU/TCP



 Technical Data

Dimensions

Related Files

File Type Size Last update Link
DB87S 3D Model stp 456.135KB March / 10 / 2020   Download
DB87S01-S Data Sheet pdf 198.972KB March / 10 / 2020   Download
