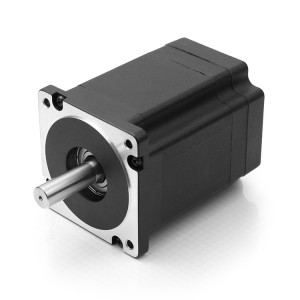

DB87L01-S 80mm High Performance DC Servo Motor
Brushless DC motor with high output power and long service life. By mounting a Nanotec encoder, this motor can be expanded into a high-performance servo motor for high speed ranges. For higher torques high-performance planetary gearboxes can be mounted. Via the online configurator this motor can also be ordered with magnetic encoder or brake. Available in three lengths.
Features
- High speed
- Longer life and higher accuracy
- Different lengths available
- Microdriver available
- Closed-loop and open-loop versions are available
Specifications
| Rated Output P (W): | 660 W |
| Rated Torque T (Nm): | 2.1 Nm |
| Flange (mm): | 86 mm |
| No-load speed (rpm): | 3000 rpm |
| Motor type: | Brushless DC Motor |
| IP Protection: | IP54 |
| Optional: | Encoder & Gearbox |
| Controllers / Drives Optional: |
N5 - Motor controller for CANopen,EtherCAT,EtherNet/IP, Modbus RTU/TCP
|
Technical Data
Dimensions
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| DB87L 3D Model | stp | 455.039KB | March / 10 / 2020 | Download |
| DB87L01-S Data Sheet | 198.956KB | March / 10 / 2020 | Download |
