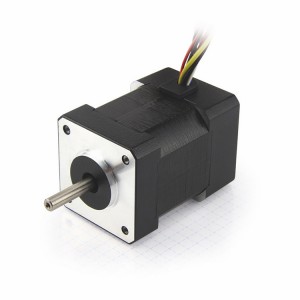

DB41S024030-A DC Brushless Motors-Nema17

BLDC motor with bonded magnets and 10 poles. Higher torque than the DB42 motor and a rated speed of 3,000 rpm. By mounting a Nanotec encoder, this motor can be expanded into a high-performance servo motor for high speed ranges. For higher torques and a wider performance range Nanotec offers planetary gearboxes with an identical construction.  Available in various lengths and versions.

Features

  • High speed
  • Longer life and higher accuracy
  • Different lengths available
  • Microdriver available
  • Closed-loop and open-loop versions are available

Specifications

Rated Output P (W):22 W
Rated Torque T (Nm):0.07 Nm
Flange (mm):42 mm
No-load speed (rpm):3000 rpm
Motor type:Brushless DC Motor
IP Protection:IP54
Optional:Encoder & Gearbox
Controllers / Drives Optional:

CL3-E - Motor controller for CANopen, Modbus RTU or USB



 Technical Data

Dimensions

Related Files

File Type Size Last update Link
DB41S024030-A 3D Model stp 420.88KB March / 09 / 2020   Download
DB41S024030-A Data Sheet pdf 85.576KB March / 09 / 2020   Download
