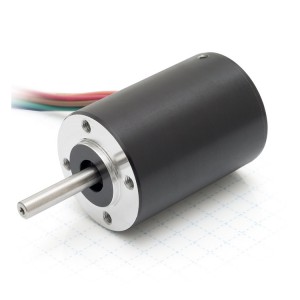

DB28S01 DC Brushless Motors-Nema11
Ultra-compact BLDC motor with high output power, very quiet running properties and long service life. By mounting a Nanotec encoder, this motor can be expanded into a high-performance servo motor for high speed ranges. Available in three lengths.
Features
- High speed
- Longer life and higher accuracy
- Different lengths available
- Microdriver available
- Closed-loop and open-loop versions are available
Specifications
| Rated Output P (W): | 4.2 W |
| Rated Torque T (Nm): | 0.005 Nm |
| Flange (mm): | 28 mm |
| No-load speed (rpm): | 8000 rpm |
| Motor type: | Brushless DC Motor |
| IP Protection: | IP54 |
| Optional: | Encoder & Gearbox |
| Controllers / Drives Optional: |
CL3-E - Motor controller for CANopen, Modbus RTU or USB
|
Technical Data
Dimensions
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| DB28S01 Data Sheet | 88.177KB | March / 09 / 2020 | Download | |
| DB28S01 3D Model | stp | 116.289KB | March / 09 / 2020 | Download |
