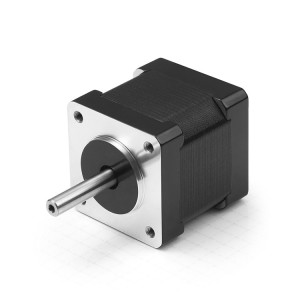

ST3518M 35MM Ball Linear Stepper-Nema14
High-torque stepper motor in size NEMA 14 (35 mm) with 1.8° step angle (full step). Available in three lengths. An extensive range of customized shaft and cable versions as well as custom-made products can be found under Custom solutions.
Features
- This motor can be combined with a gearbox.
- The version with B shaft can also be ordered with an NOE1 encoder (optional).
Specifications
| Size(mm): | 35 mm |
| Resolution (um): | 1.8 um |
| Rated Speed (RPM): | 600 rpm |
| Torque (Nm): | 0.14 Nm |
| Resolution (um): | 1.8 |
| Integrated Encoder: | No |
| Optional: | Encoder & Gearbox |
| Controllers / Drives Optional: |
CL3-E – Motor controller for CANopen, Modbus RTU or USB |
Dimensions
Torque Curves
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| ST3518M1004-A 3D Model | stp | 284.879KB | December / 18 / 2019 | Download |
| ST3518M1004-A Data Sheet | 92.986KB | December / 18 / 2019 | Download | |
| ST3518M1004-B 3D Model | stp | 293.786KB | December / 18 / 2019 | Download |
| ST3518M1004-B Data Sheet | 102.036KB | December / 18 / 2019 | Download |
