42STH47 standard

42STH47 standard 42MM Ball Linear Stepper-Nema17

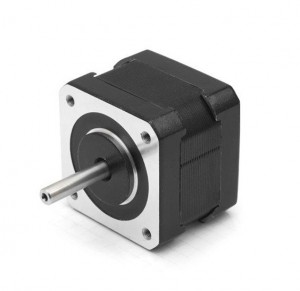

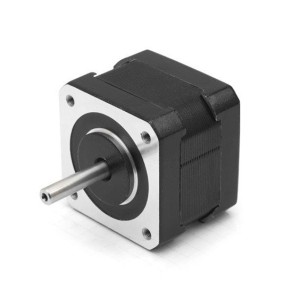

The 42H47 motor is a very common two-phase hybrid stepping motor, 42mm square flange, body height 47mm (48mm), torque 0.5Nm, step angle 1.8 degrees, optional encoder for installation, to achieve higher precision positioning See 42H47ENC5 version. In addition, our company can provide various drive control modules.

Features

  • Standard size
  • High-speed output
  • Optional encoder, optional drive control module
  • Stable and reliable
  • Support customization

Specifications

Size(mm):42 mm
Resolution (um):1.8 um
Rated Speed (RPM):1000 rpm
Torque (Nm):0.5 Nm
Resolution (um):1.8
Integrated Encoder:Yes
Optional:Encoder & Gearbox
Customization:Customization data
Controllers / Drives Optional:

Controllers / Drives

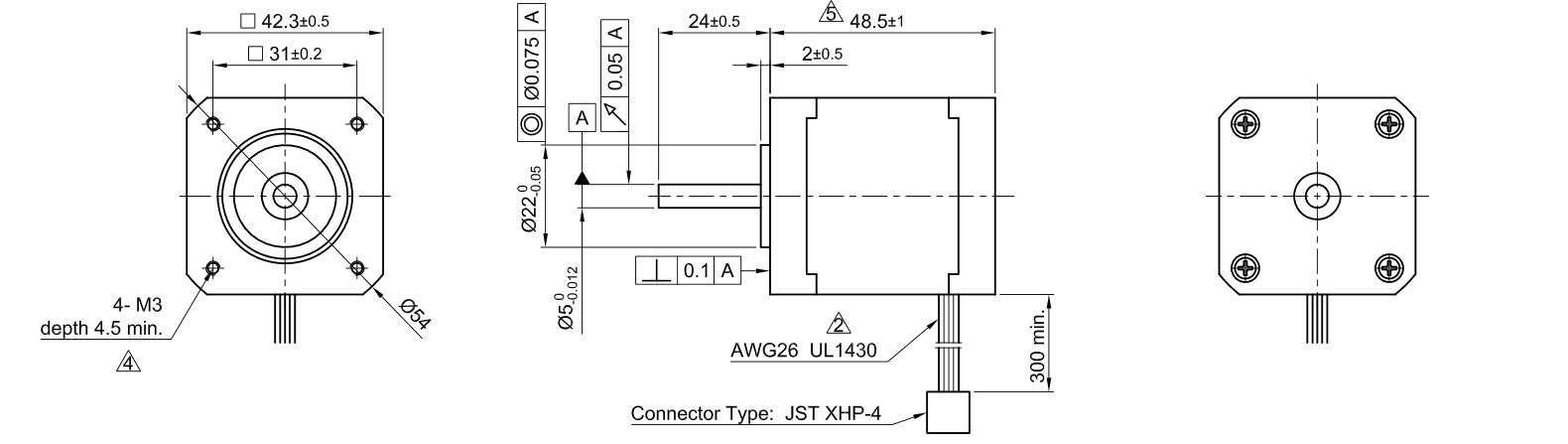

Size(mm)

Torque(Horizontal coordinate rpm, vertical coordinate Nm

*The results obtained by different drive modules will be different

Application suggestions

*High-speed and high-precision positioning, closed-loop version is recommended

*shaft can be customized

Esle Common shaft

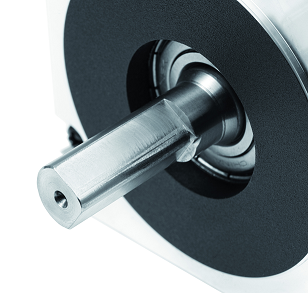

D-cut:Cut in D direction, plane for fixing   Short output shaft
